▷Specification

◼ Breath inlet

Length: 0.5 ~ 1 m

Temperature range: 40°C ~ 150°C

Internal sample tubing: 1/8” OD, 1/16” ID PFA or Silconert 2000 treated stainless Steel

Disposable mouthpiece: ACE® 100078 (compatible with ACE one, ACE I (AL7000), ACE II Basic plus, ACE III Basic, ACE III Premium, ACE Neo, ACE AL6000)

◼ CI-TOF-MS

▷Features

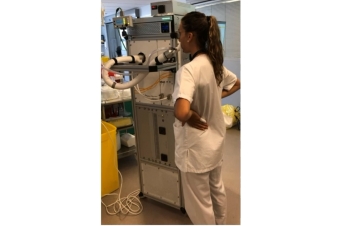

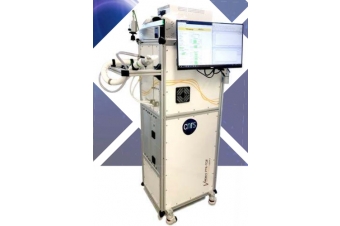

◼ Direct sampling of human breath with the Vocus CI-TOF-MS

◼ Quantitative response for diverse VOCs in breath with parts-per-trillion (ppt) detection limits

◼ Heated interface for efficient transfer of lower volatility compounds

◼ Automated alternation between breath, background, calibration, and ambient measurements

◼ Continuous mouthpiece flushing and active inhalation and contamination prevention

▷Applications

Disease diagnosis of COVID-19, lung cancer and diabetes, Breathomics research, Therapeutic treatment monitoring, Pharmacokinetics
